Tic-Tac-Toe House Recreation

The Tic-Tac-Toe House project is a reinterpretation of the original design, carried out as an academic exercise to develop a deeper understanding of technical drawing conventions and documentation.

Technical Plans
[Made with AutoCAD]

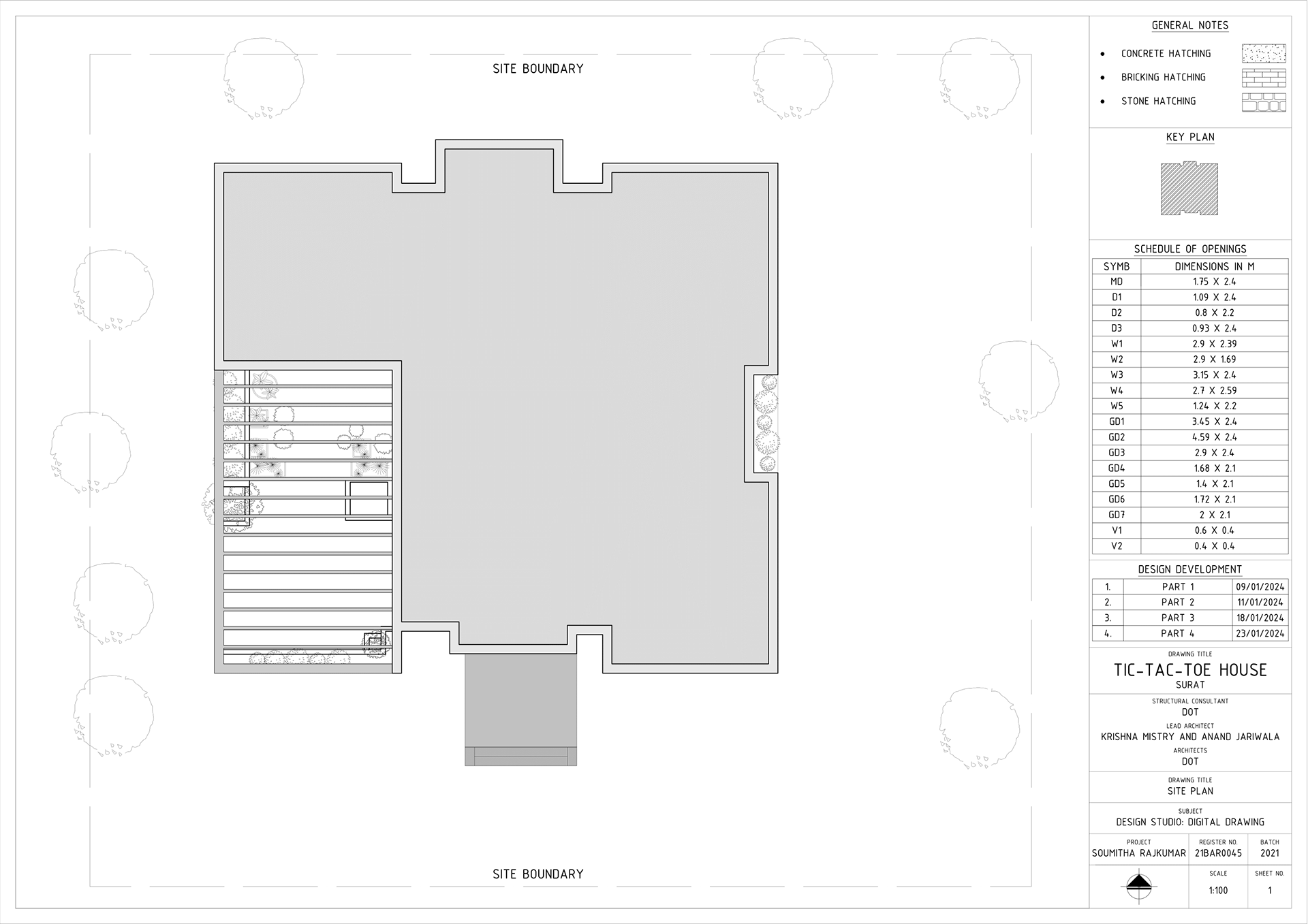

Site PLan
Site PLan

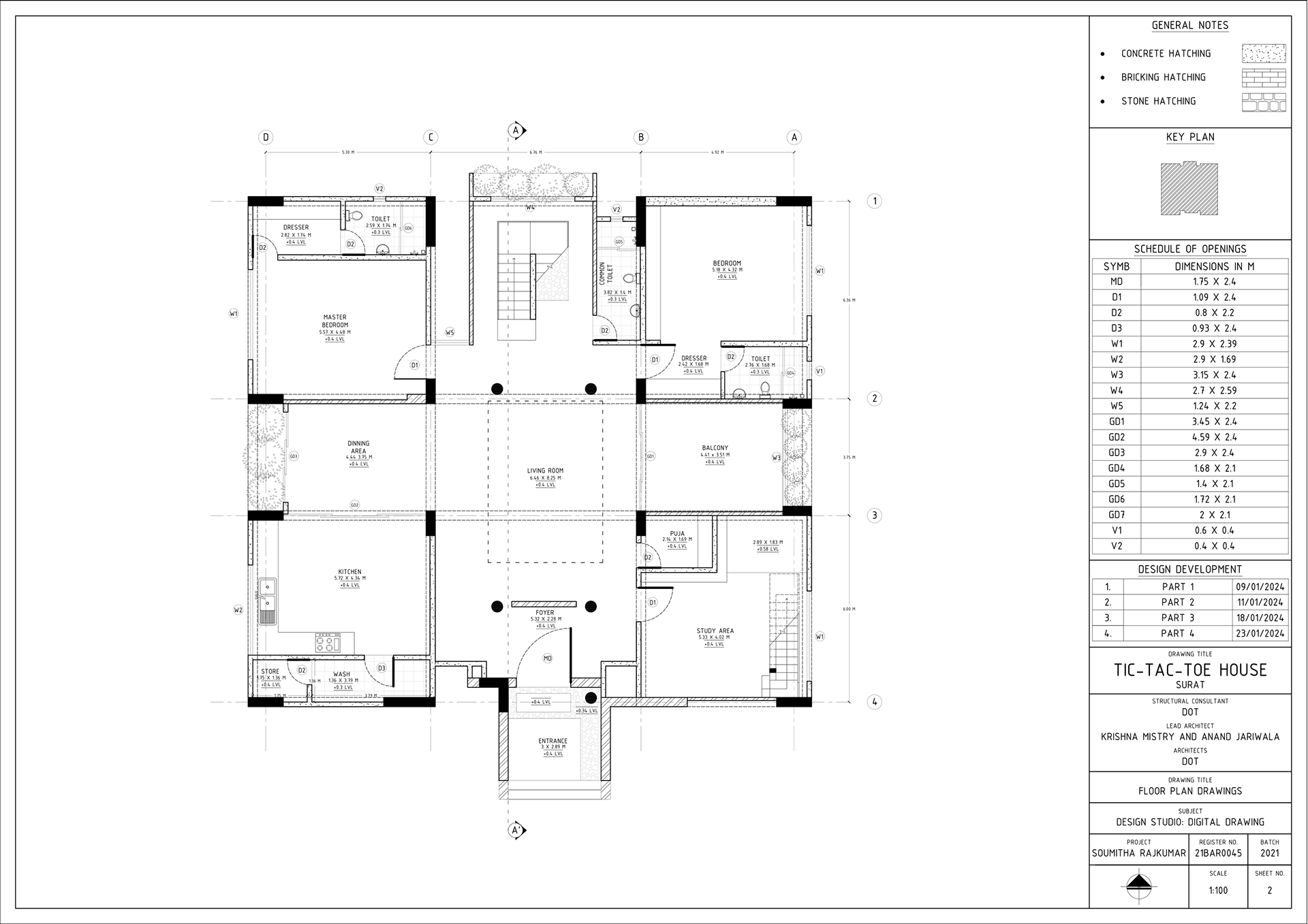

Ground Floor
Ground Floor

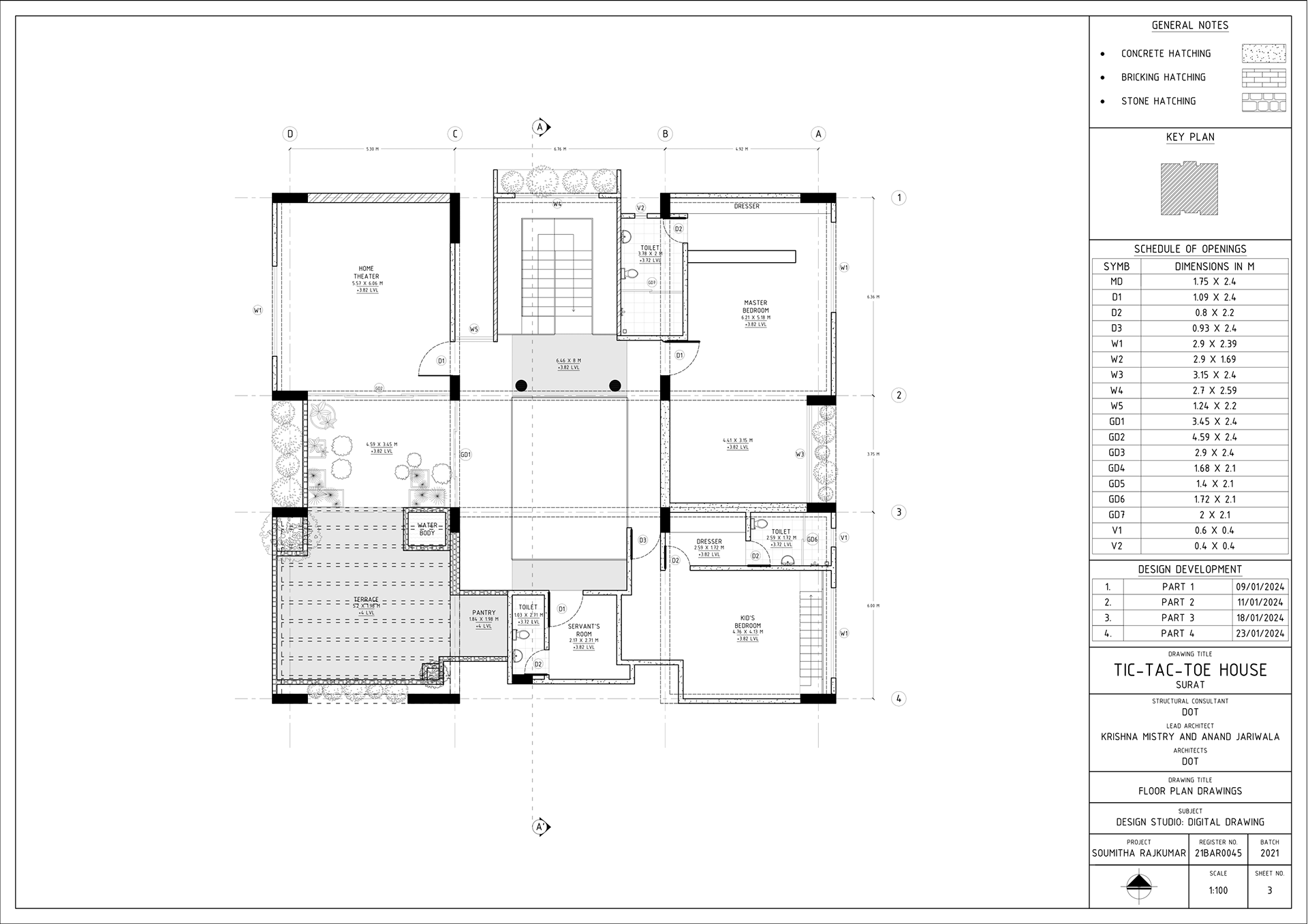

First Floor
First Floor

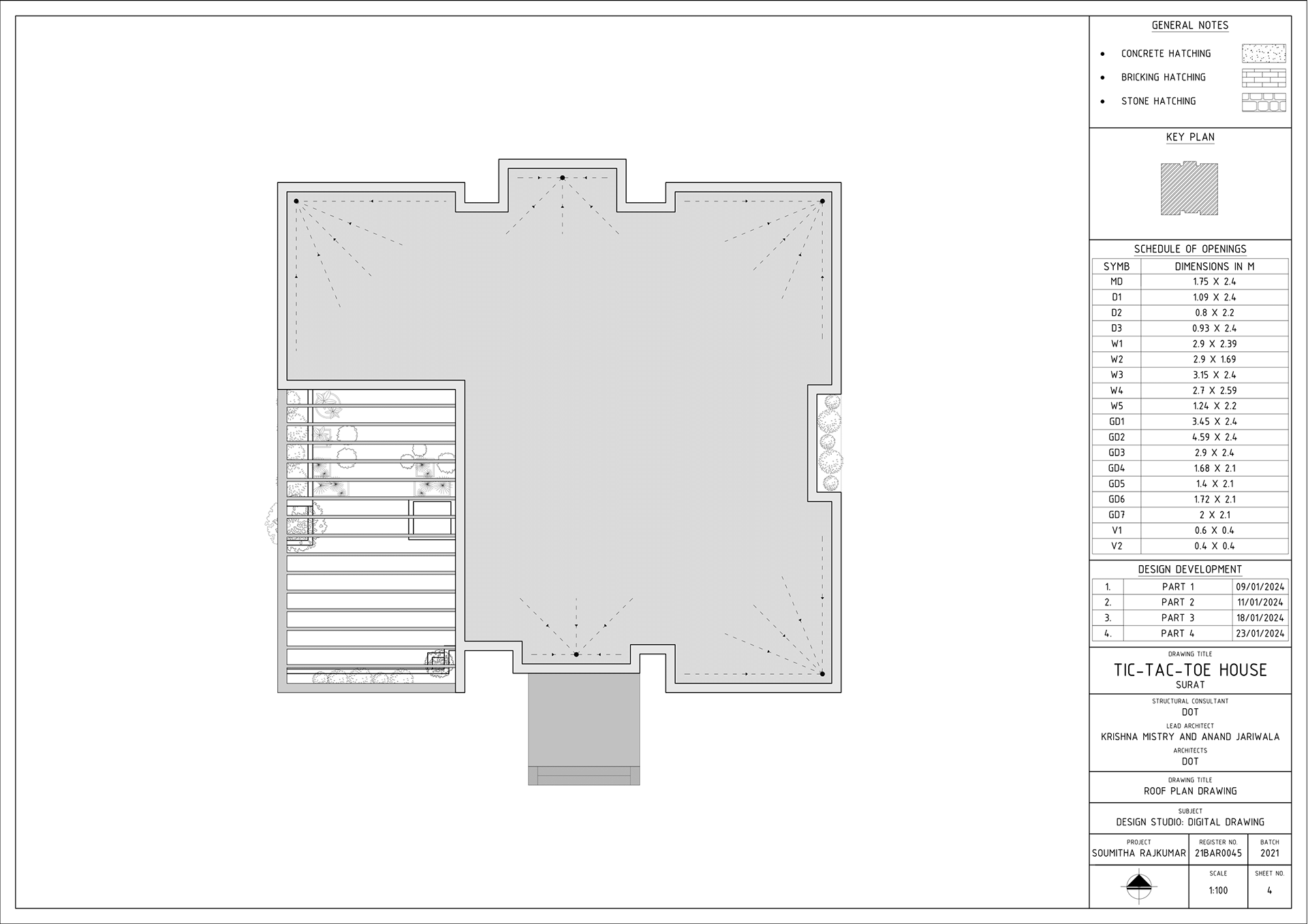

Roof Plan
Roof Plan

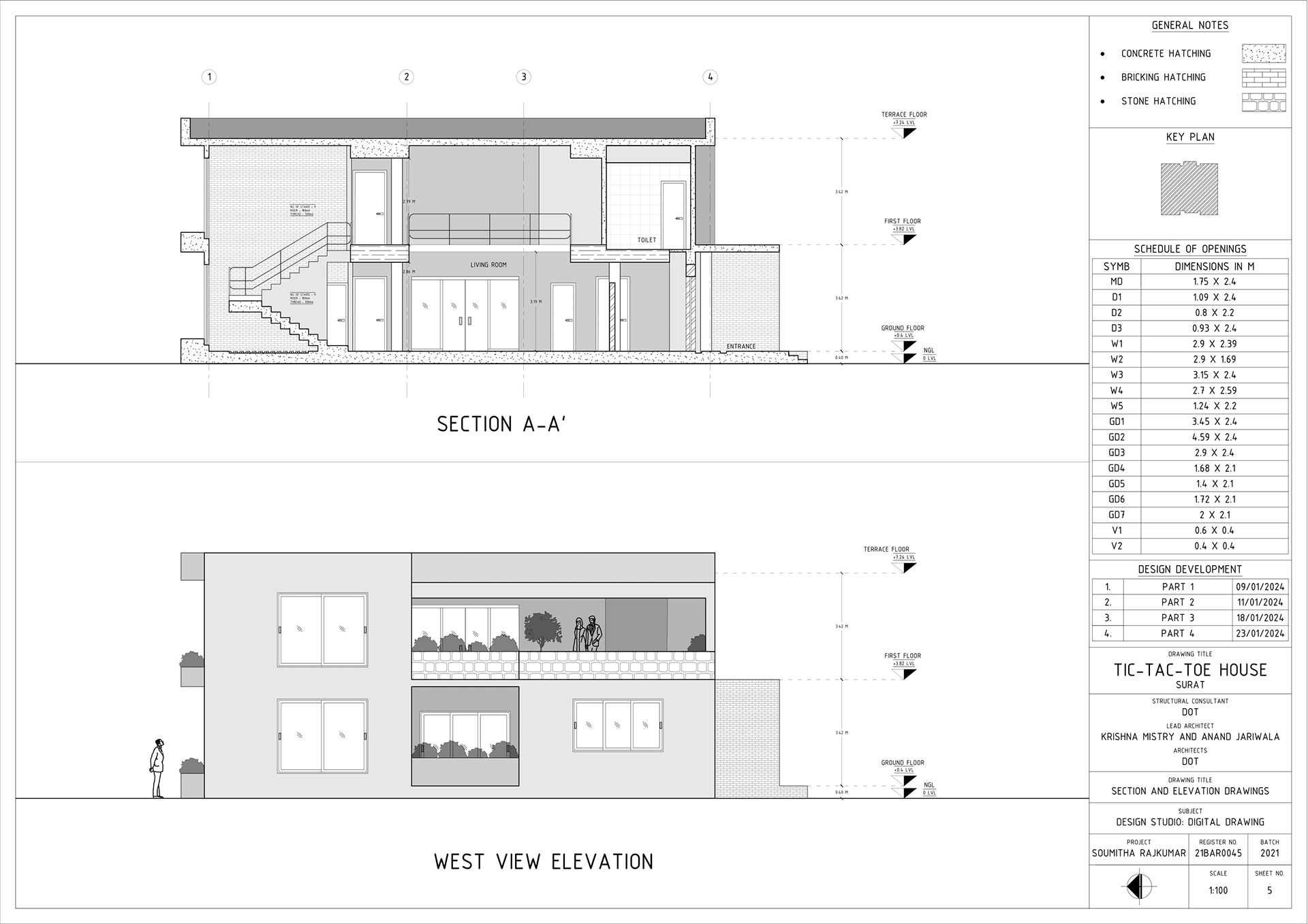

Section and Elevation
Section and Elevation

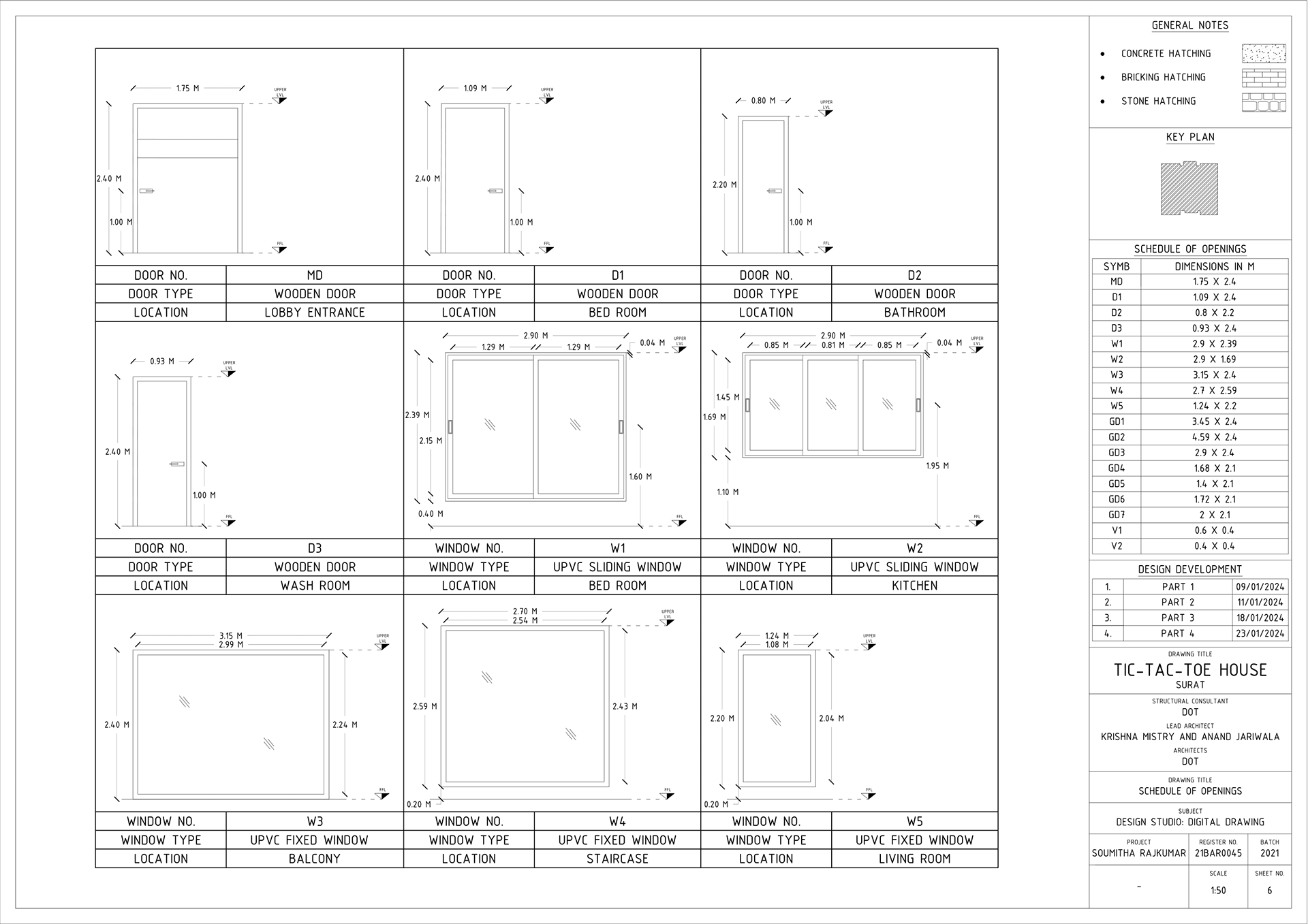

Schedule of Openings 1
Schedule of Openings 1

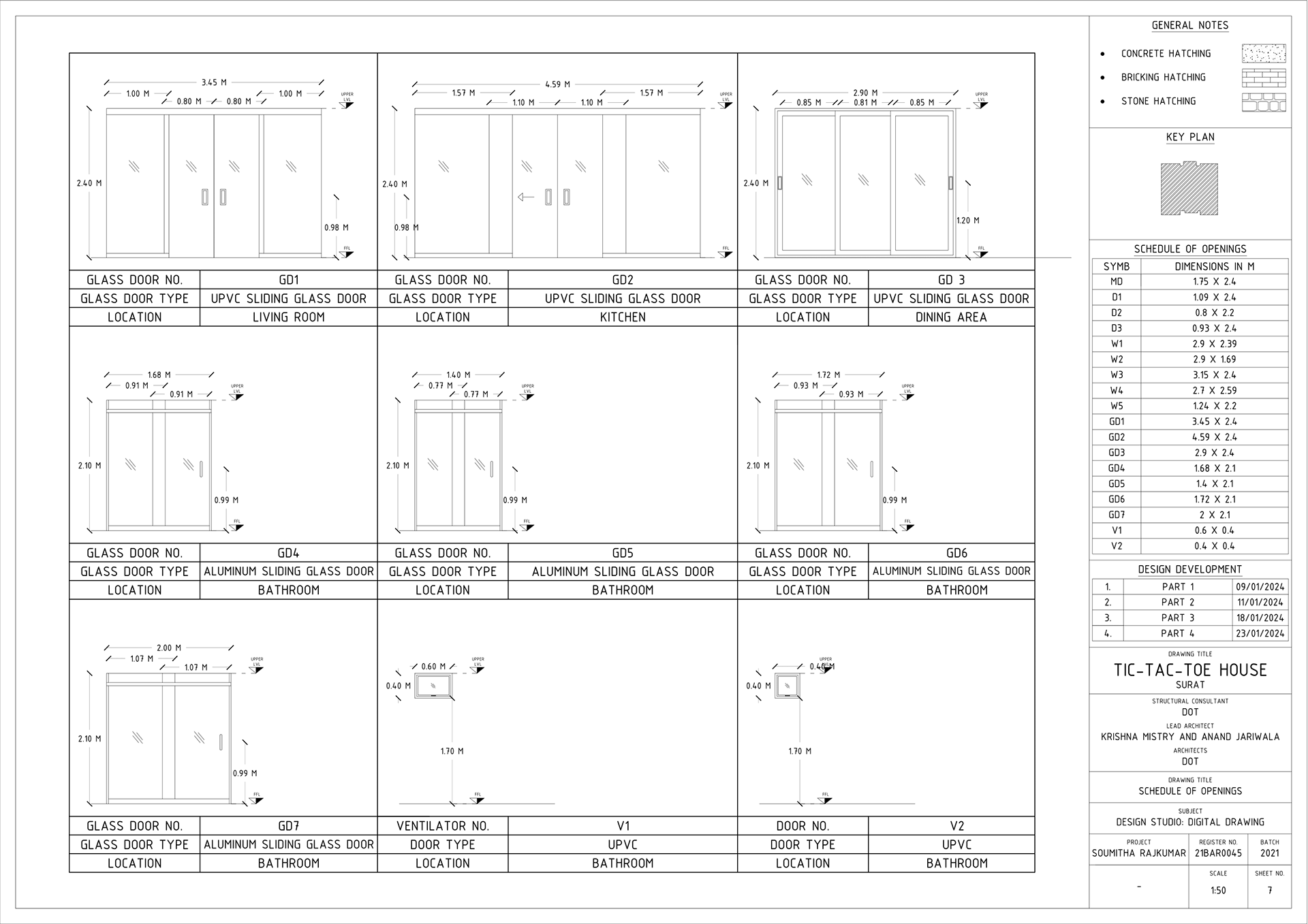

Schedule of Openings 2
Schedule of Openings 2

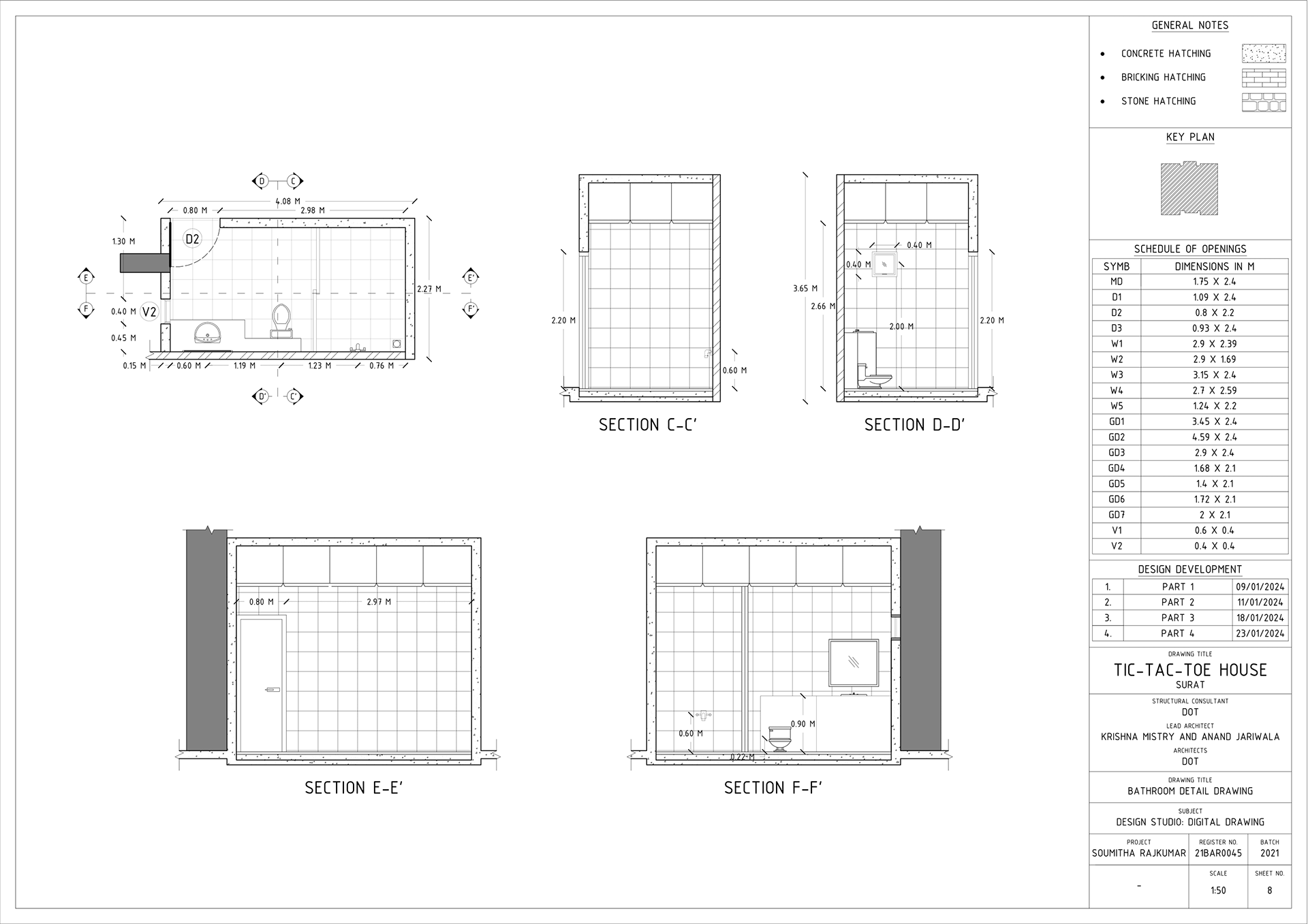

Bathroom Details
Bathroom Details

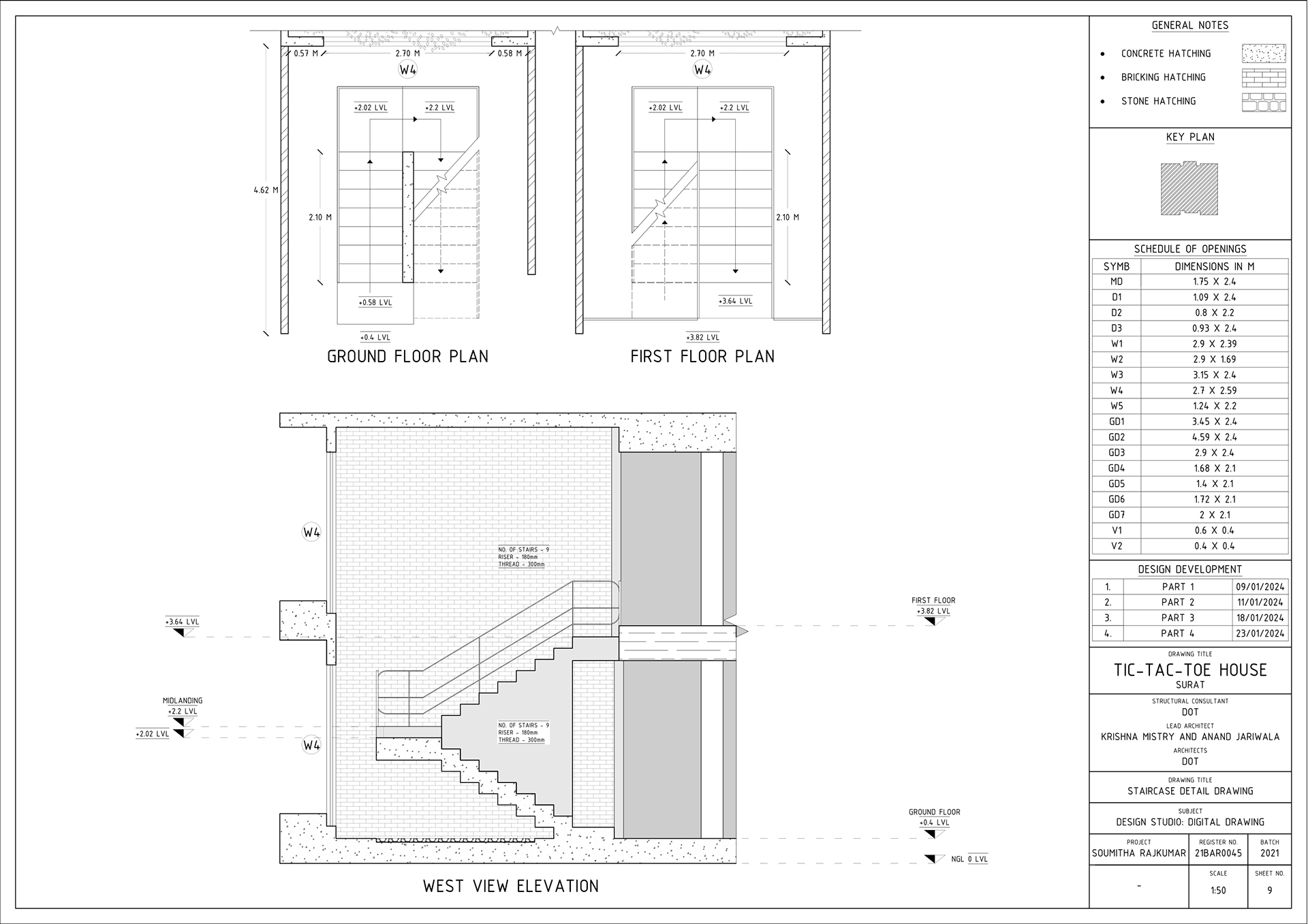

Staircase Details
Staircase Details

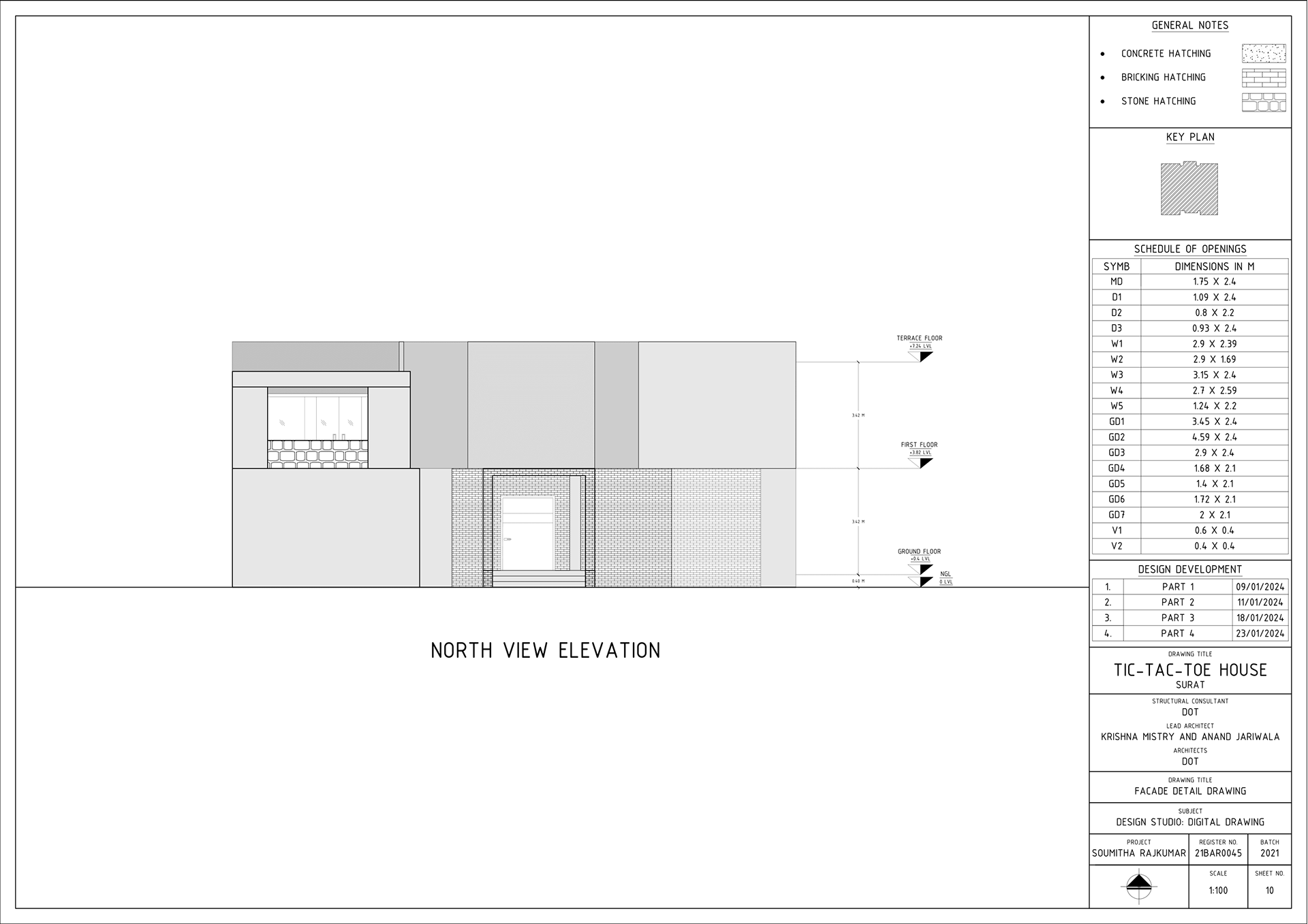

Facade Plan
Facade Plan

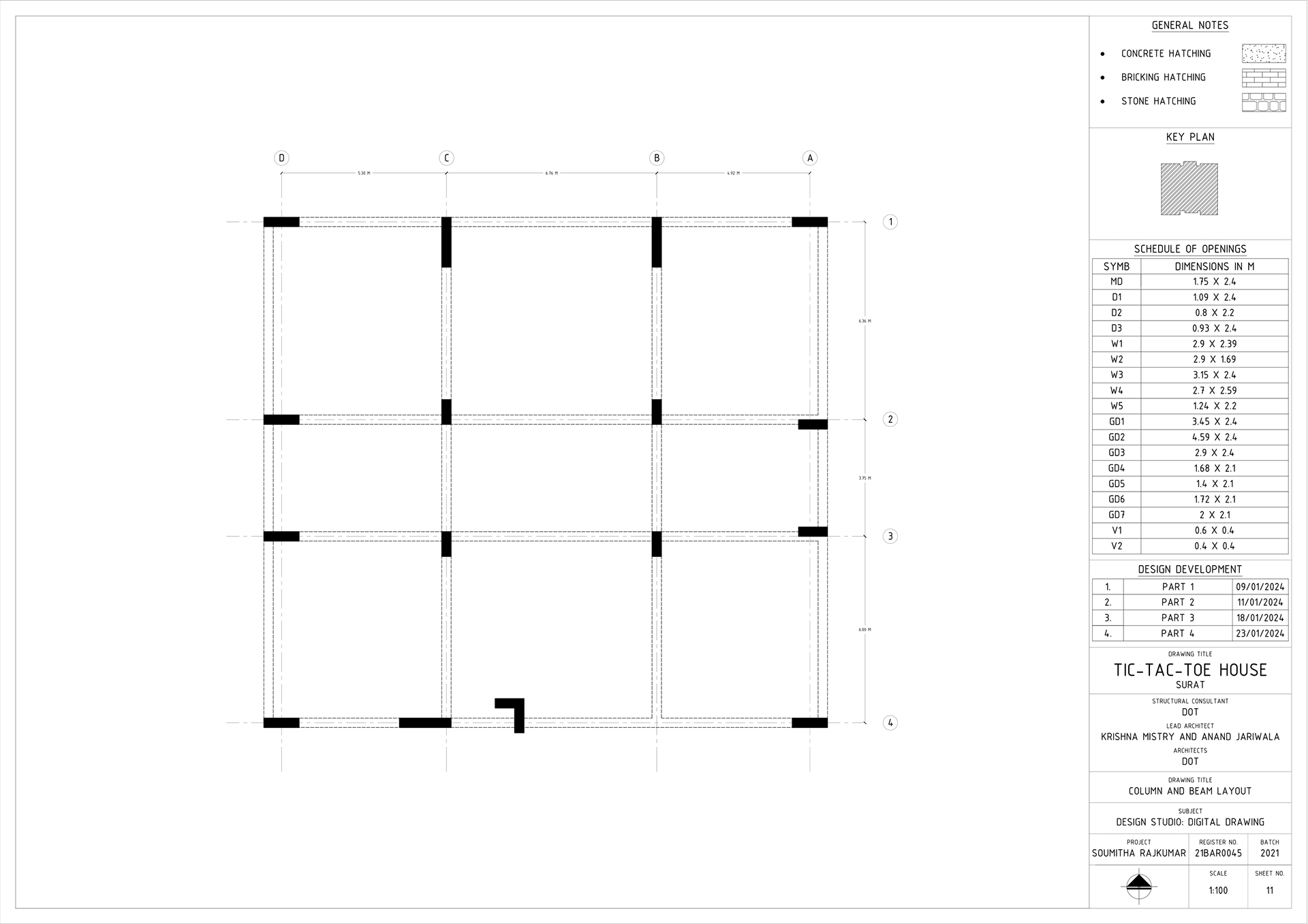

Column and Plinth Beam: Ground Floor
Column and Plinth Beam: Ground Floor

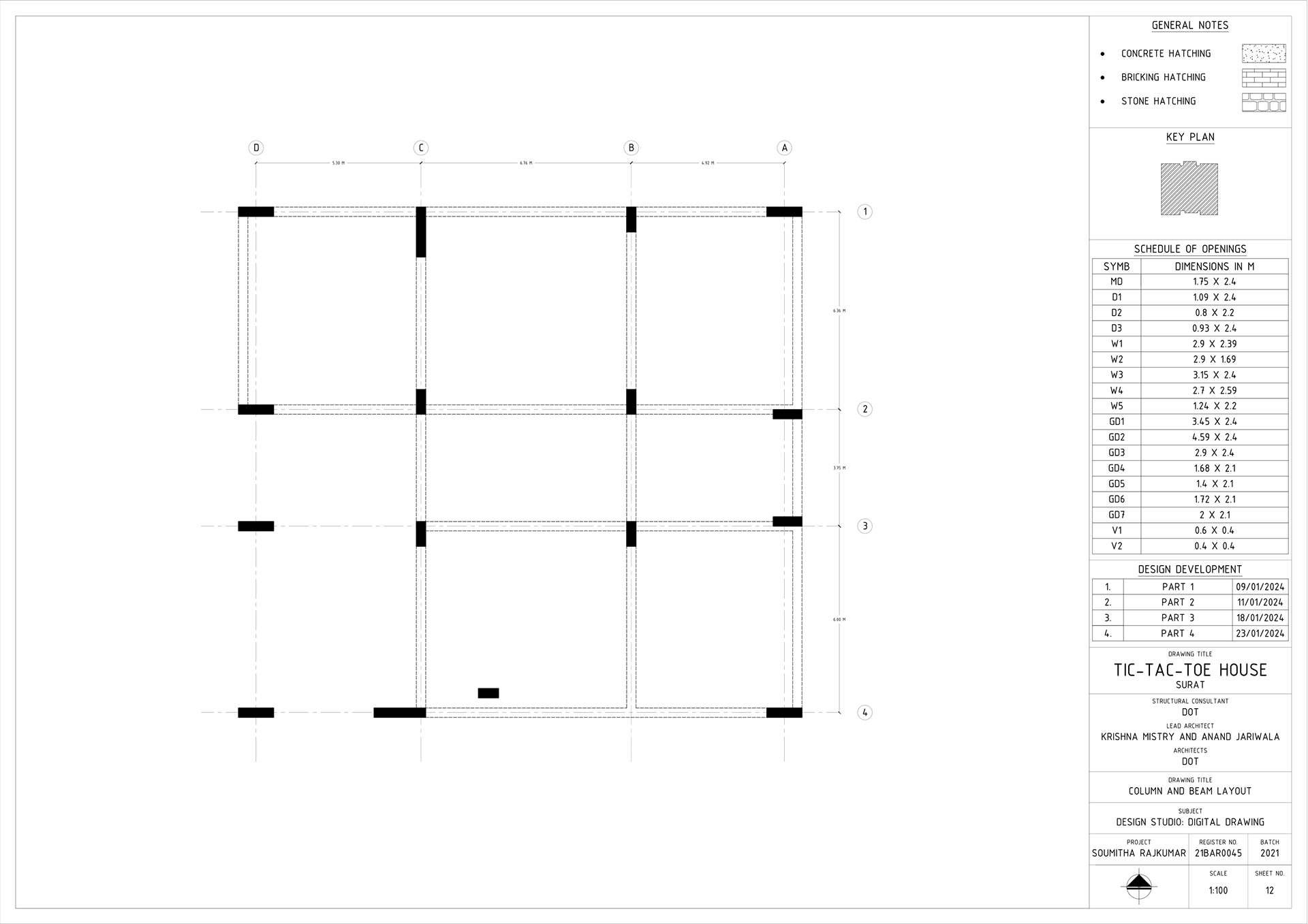

Column and Plinth Beam: First Floor
Column and Plinth Beam: First Floor
